离心扇50*50

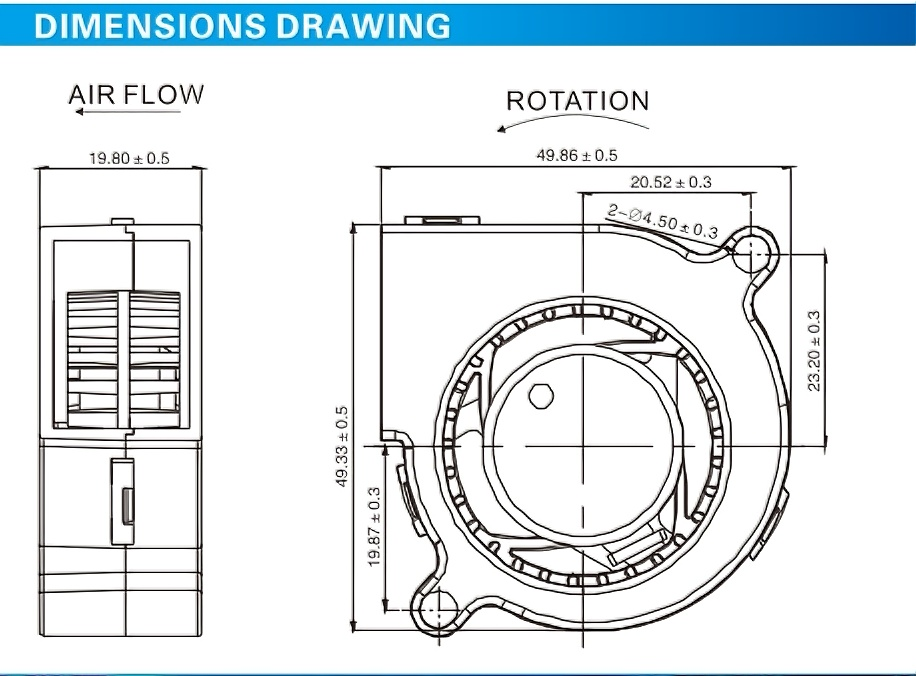

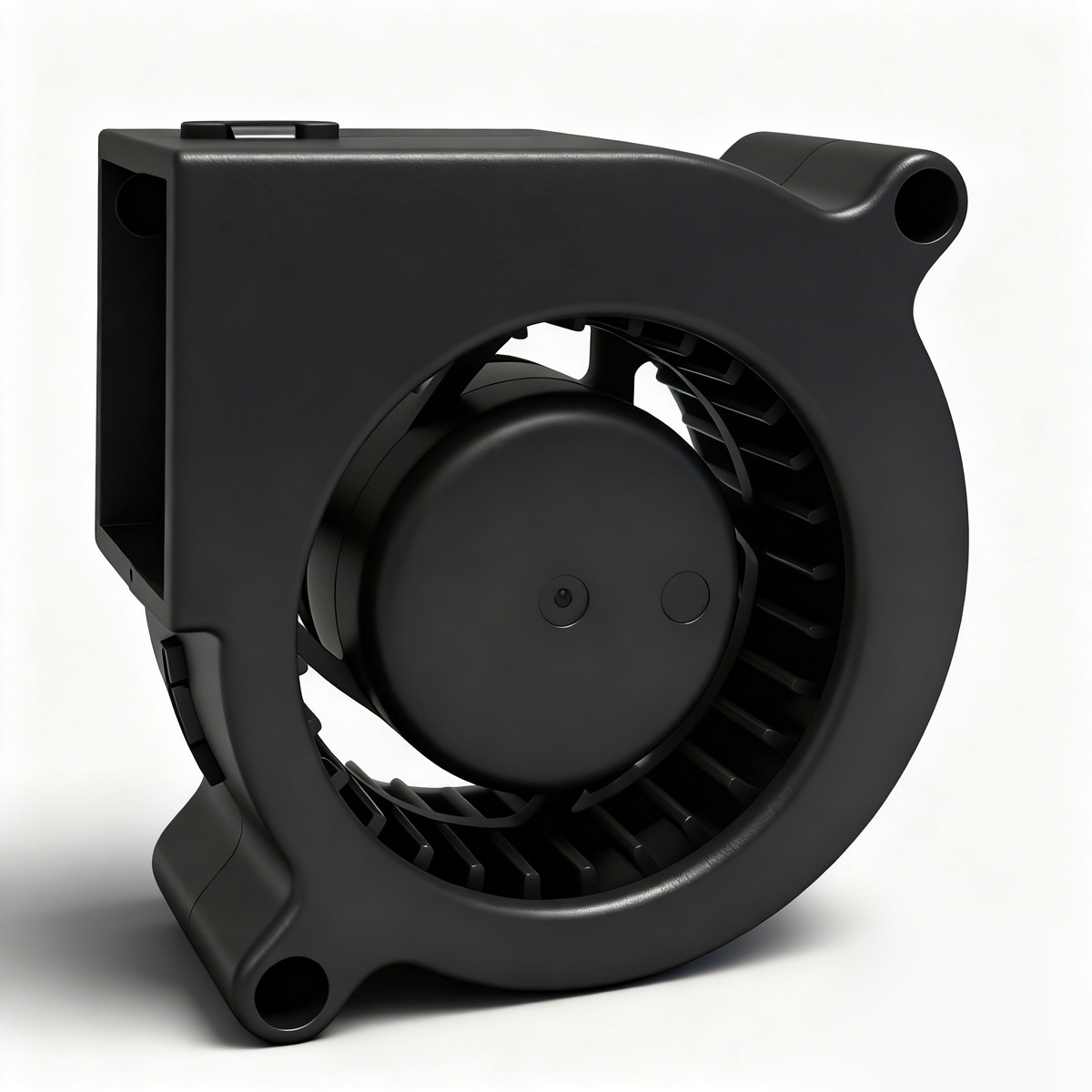

离心风扇规格：50*50*20
| Model | Dimm | Bearing |
Rated Voltage |
Speed | Air Flow |
Static Pressure |
Power Current |
Power Consumption |
Noise | Weight |
| Part NO. | mm | Type | VDC | RPM | CPM | mmH₂O | AMP | WATTS | dBA | g |
| SBA0515×05DA | 50*50*20 | Q or B | 12 | 6500 | 4.36 | 17.73 | 0.20 | 2.40 | 44.3 | 28 |
| SBA0515×05BA | 50*50*20 | 12 | 5500 | 3.69 | 12.69 | 0.13 | 1.56 | 40.7 | 28 | |
| SBA0515×05MA | 50*50*20 | 12 | 4500 | 3.02 | 8.50 | 0.08 | 0.96 | 36.3 | 28 | |
| SBA0515×05LA | 50*50*20 | 12 | 3500 | 2.35 | 5.14 | 0.06 | 0.72 | 29.0 | 28 | |
| SBA0515×12DA | 50*50*20 | 24 | 6500 | 4.36 | 17.73 | 0.09 | 2.16 | 44.3 | 28 | |
| SBA0515×12BA | 50*50*20 | 24 | 5500 | 3.69 | 12.69 | 0.06 | 1.44 | 40.7 | 28 | |
| SBA0515×12MA | 50*50*20 | 24 | 4500 | 3.02 | 8.50 | 0.04 | 0.96 | 36.3 | 28 | |
| SBA0515×12LA | 50*50*20 | 24 | 3500 | 2.35 | 5.14 | 0.03 | 0.72 | 29.0 | 28 |

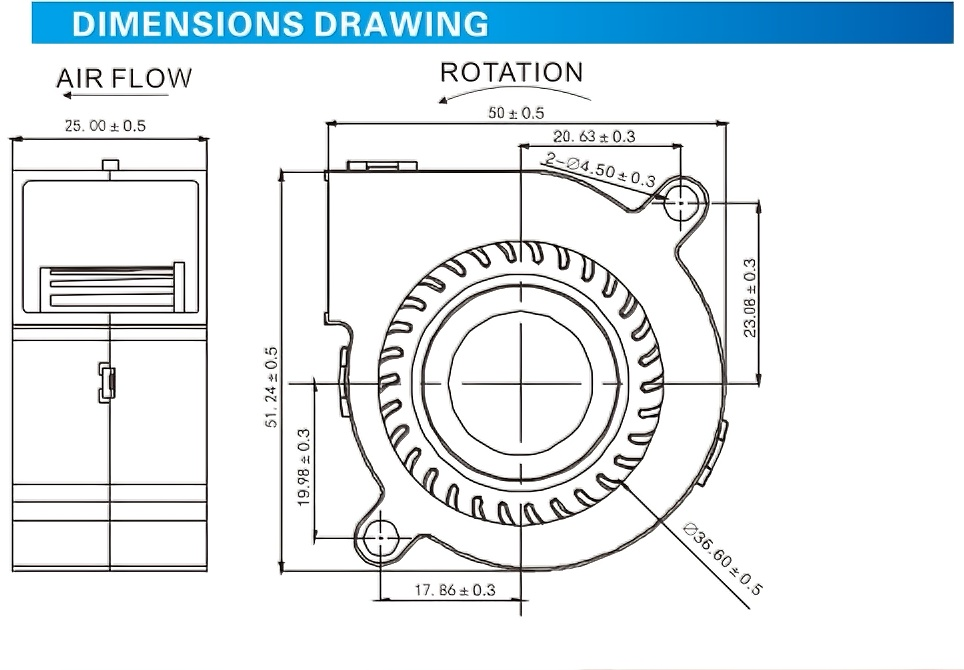

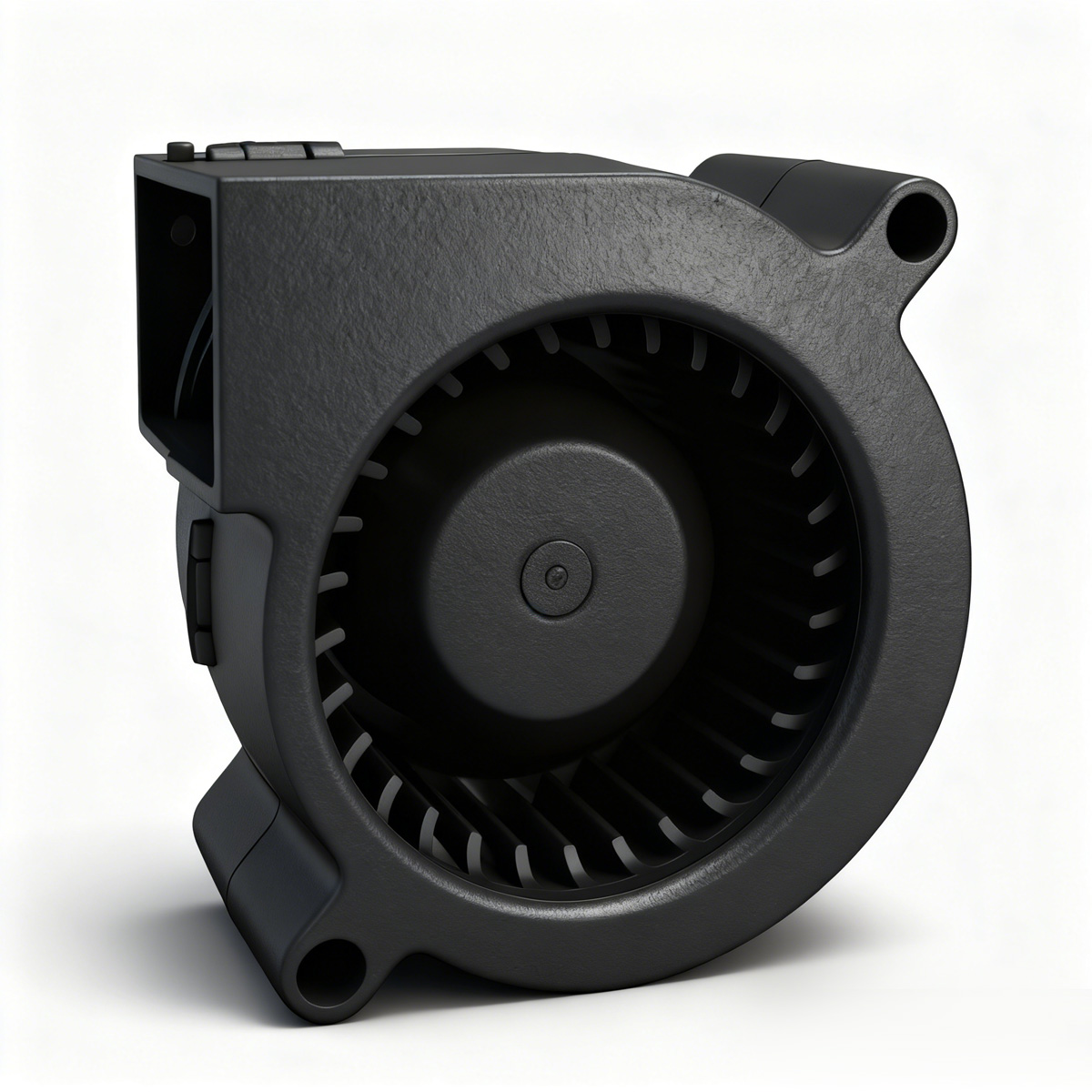

离心风扇规格：50*50*25
| Model | Dimm | Bearing |
Rated Voltage |
Speed | Air Flow |
Static Pressure |
Power Current |
Power Consumption |
Noise | Weight |
| Part NO. | mm | Type | VDC | RPM | CPM | mmH₂O | AMP | WATTS | dBA | g |
| SBA0525×05HA | 50*50*25 | Q or B | 5 | 6000 | 6.68 | 17.57 | 0.56 | 2.80 | 45.0 | 35.0 |
| SBA0525×05MA | 50*50*25 | 5 | 4500 | 5.01 | 9.88 | 0.28 | 1.40 | 38.7 | 35.0 | |
| SBA0525×05LA | 50*50*25 | 5 | 3000 | 3.34 | 4.39 | 0.12 | 0.60 | 30.0 | 35.0 | |
| SBA0525×12HA | 50*50*25 | 12 | 6000 | 6.68 | 17.57 | 0.27 | 3.24 | 45.0 | 35.0 | |
| SBA0525×12MA | 50*50*25 | 12 | 4500 | 5.01 | 9.88 | 0.11 | 1.32 | 38.7 | 35.0 | |
| SBA0525×12LA | 50*50*25 | 12 | 3000 | 3.34 | 4.39 | 0.08 | 0.96 | 30.0 | 35.0 | |
| SBA0525×24HA | 50*50*25 | 24 | 6000 | 6.68 | 17.57 | 0.14 | 3.36 | 45.0 | 35.0 | |
| SBA0525×24MA | 50*50*25 | 24 | 4500 | 5.01 | 9.88 | 0.06 | 1.44 | 38.7 | 35.0 | |
| SBA0525×24LA | 50*50*25 | 24 | 3000 | 3.34 | 4.39 | 0.04 | 0.96 | 30.0 | 35.0 |
Download →
