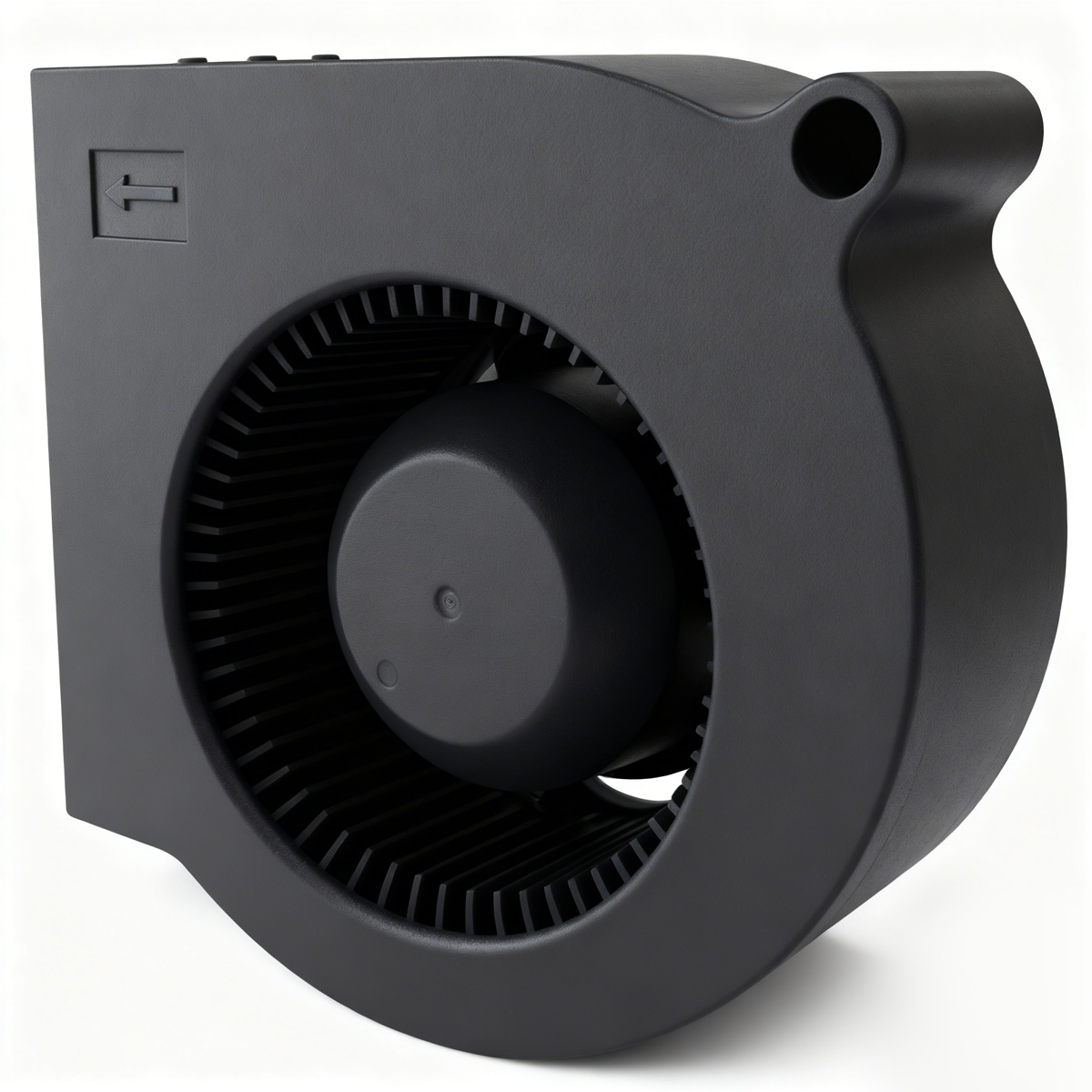

离心扇70*70
| Model | Dimm | Bearing |
Rated Voltage |
Speed | Air Flow |
Static Pressure |
Power Current |
Power Consumption |
Noise | Weight |
| Part NO. | mm | Type | VDC | RPM | CFM | mmH₂O | AMP | WATTS | dBA | g |
| SBA0728x12HA | 70*70*28 | Q or B | 12 | 4500 | 11.38 | 12.26 | 0.33 | 3.96 | 40.5 | 63 |
| SBA0728x12MA | 70*70*28 | 3500 | 8.85 | 7.42 | 0.22 | 2.64 | 35.0 | 63 | ||
| SBA0728x12LA | 70*70*28 | 2500 | 6.32 | 3.78 | 0.08 | 0.96 | 27.7 | 63 | ||
| SBA0728x24HA | 70*70*28 | Q or B | 24 | 4500 | 11.38 | 12.26 | 0.17 | 4.08 | 40.5 | 63 |
| SBA0728x24MA | 70*70*28 | 3500 | 8.85 | 7.42 | 0.11 | 2.64 | 35.0 | 63 | ||
| SBA0728x24LA | 70*70*28 | 2500 | 6.32 | 3.78 | 0.04 | 0.96 | 27.7 | 63 |
Download →
