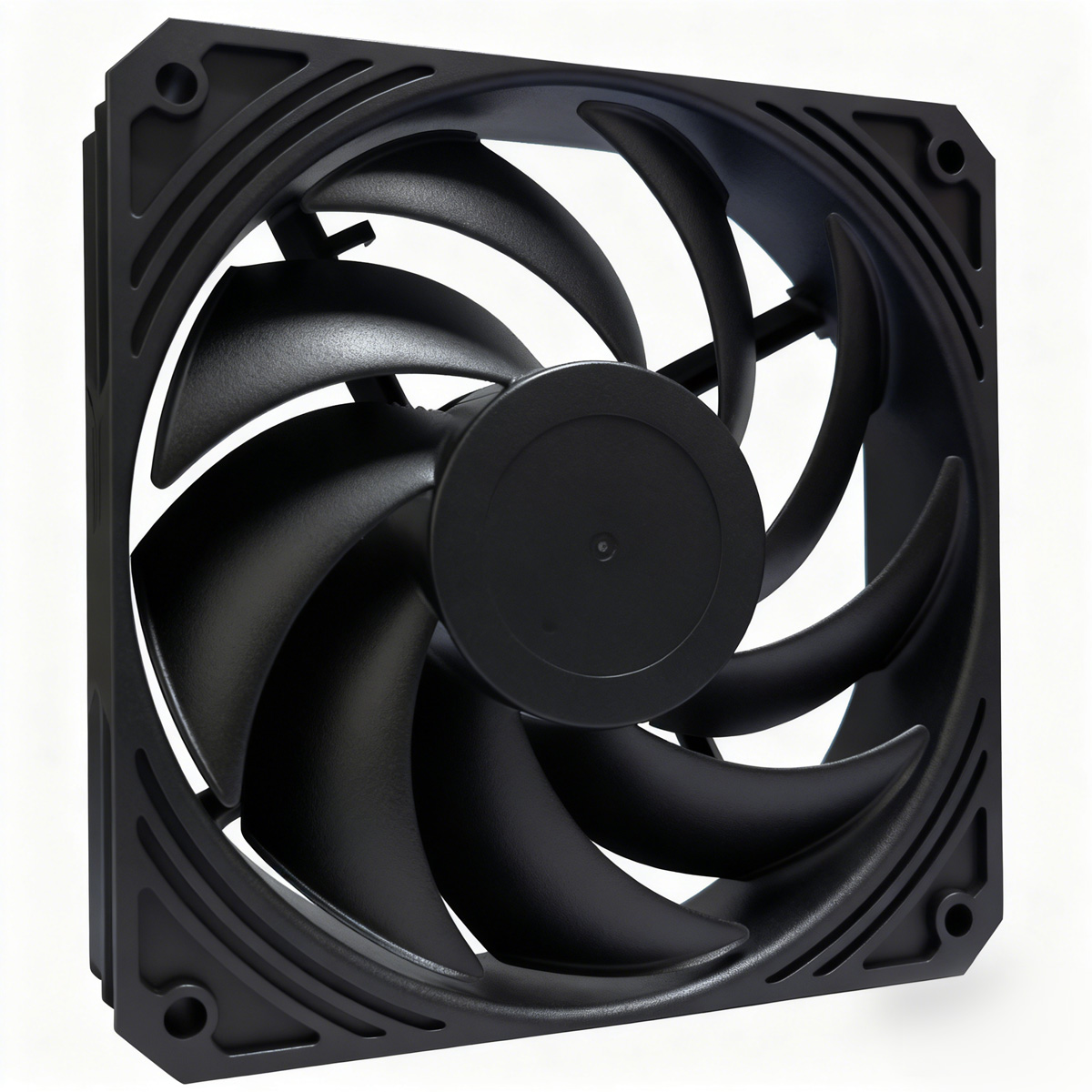

轴流扇120*120
| Model | Dimm | Bearing |
Rated Voltage |
Speed | Air Flow |
Static Pressure |
Power Current |
Power Consumption |
Noise | Weight |
| Part NO. | mm | Type | VDC | RPM | CFM | mmH₂O | AMP | WATTS | dBA | g |
| SAA1225×12HD | 120*120*25 | Q orB | 12 | 3000 | 109.49 | 5.45 | 0.46 | 5.52 | 38.7 | 175 |
| SAA1225x12MD | 120*120*25 | 2600 | 94.89 | 4.10 | 0.30 | 3.60 | 35.6 | 175 | ||
| SAA1225x12LD | 120*120*25 | 2200 | 80.29 | 2.93 | 0.18 | 2.16 | 32.0 | 175 | ||
| SAA1225×24HD | 120*120*25 | Q or B | 24 | 3000 | 109.49 | 5.45 | 0.23 | 5.52 | 38.7 | 175 |
| SAA1225×24MD | 120*120*25 | 2600 | 94.89 | 4.10 | 0.16 | 3.84 | 35.6 | 175 | ||
| SAA1225x24LD | 120*120*25 | 2200 | 80.29 | 2.93 | 0.10 | 2.40 | 32.0 | 175 | ||
| SAA1238x12HB | 120*120*38 | SorB | 12 | 3800 | 169.99 | 13.81 | 1.76 | 21.12 | 56.4 | 285 |
| SAA1238x12MB | 120*120*38 | 3200 | 143.15 | 9.80 | 1.05 | 12.60 | 51.9 | 285 | ||
| SAA1238×12LB | 120*120*38 | 2600 | 116.31 | 6.47 | 0.57 | 6.84 | 46.9 | 285 | ||
| SAA1238x24HB | 120*120*38 | Sor B | 24 | 3800 | 169.99 | 13.81 | 0.82 | 19.68 | 56.4 | 285 |
| SAA1238×24MB | 120*120*38 | 3200 | 143.15 | 9.80 | 0.49 | 11.76 | 51.9 | 285 | ||
| SAA1238x24LB | 120*120*38 | 2600 | 116.31 | 6.47 | 0.27 | 6.48 | 46.9 | 285 | ||
| SAA1238×48HB | 120*120*38 | Sor B | 48 | 3800 | 169.99 | 13.81 | 0.41 | 19.68 | 56.4 | 285 |
| SAA1238x48MB | 120*120*38 | 3200 | 143.15 | 9.80 | 0.25 | 12.00 | 51.9 | 285 | ||
| SAA1238×48LB | 120*120*38 | 2600 | 116.31 | 6.47 | 0.14 | 6.72 | 46.9 | 285 |
